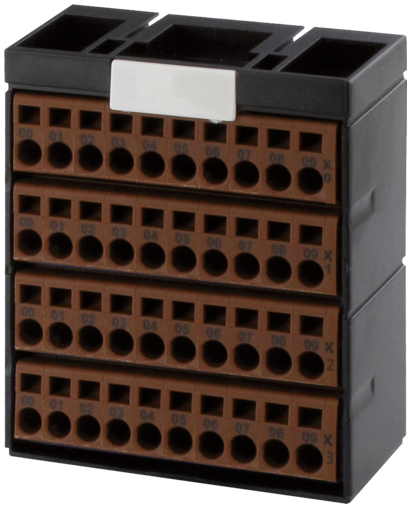

CUBE20 POTENTIAL TERMINAL BLOCK 4xBROWN 56077
Ürün resmi farklı olabilir

CUBE20 POTENTIAL TERMINAL BLOCK 4xBROWN

Ürün No. 56077
Ağırlık 0.079 kg
Menşei:  DE
soru sor
 Ürünü Tavsiye
 Ürün Karşılaştırma
Download to Easy-Import-Export

Tanım

Potential terminal block
Certificate
Certificate

Electrical data | Supply
Operating voltage AC max. 30 V
Operating voltage DC max. 30 V
Total current max. 10 A
Device protection | Electrical
Degree of protection (EN IEC 60529) IP20
Mechanical data | Mounting data
Height 70 mm
Width 56 mm
Depth 32,5 mm
Environmental characteristics | Climatic
Operating temperature min. 0 °C
Operating temperature max. 55 °C
Storage temperature min. -40 °C
Storage temperature max. 85 °C

Connection types
Connection type 1 X3
Connection type 1
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier colorless
No. of poles 10

ECLASS-6.0 27141106
ECLASS-7.0 27141106
ECLASS-8.0 27141106
ECLASS-9.0 27141106
ETIM-5.0 EC001283
GTIN 4048879567459
Gümrük tarife no (gtip) 85369010
Paket miktarı 1


ürün ile ilgili veriler:
  • indir Ürün PDF'i
  • indir Document: Installation guide 56109_ina_2_17.pdf
  • indir Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • indir Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • indir Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • indir Information: Certificate of conformity UKCA 56077_20-03.15_uk_z_a.pdf
  • indir Information: EU declaration of conformity 56077_20-03.15_ce_z_a.pdf
  • indir Information: MTTF Report 56077_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
