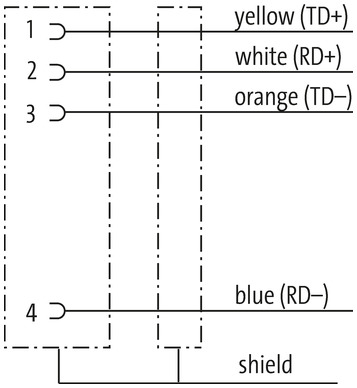

M12 female 0° D-cod. with cable shielded
PVC 1x4xAWG22 shielded gn UL/CSA+drag ch. 10m
| Ürün No. | 7000-14641-8001000 |
| Ağırlık | 0.754 kg |
| Menşei: | CZ |
Tanım
Ethernet CAT5
Female straight
M12, 4-pole
D-coded
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Teknik Veriler
| Cable length | 10 m |
|---|
Side 1
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Coding | D |
| Material | PUR |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
|---|---|
| Operating voltage DC max. (UL-listed) | 30 V |
| Current operating per contact max. | 1,5 A |
Industrial communication
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
|---|---|
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
|---|
Installation | Connection
| Mounting set | M12 x 1 |
|---|
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|
Environmental characteristics | Climatic
| Min. operating temperature (static) | -25 °C |
|---|---|
| Max. operating temperature (fixed) | 80 °C |
| Operating temperature min. (dynamic) | -10 °C |
| Operating temperature max. (dynamic) | 70 °C |
Conformities, approvals, certificates
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
Kablo verileri
Cable
| Cable identification | 800 |
|---|---|
| Approval (cable) | UL (AWM-Style 2571/10578), CSA; CE conform; PROFINET Guideline |
| Cable weight [g/m] | 73,7 g |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Single wire Ø (core) | 0.25 mm² |
| Construction (core) | 7× 0.254 mm |
| Diameter (core) | 1× 4× AWG22/7 |
| AWG | similar to AWG 22 |
| Material wire isolation | PE |
| Shore hardness wire isolation | 55 ±5 D |
| Wire-Ø incl. isolation | 1.52 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| Shield (Type) | Copper braid |
| Optical shield cover | min. 85% |
| Material jacket | PVC |
| Shore hardness jacket | 85 ±5 A |
| Outer-Ø (jacket) | 6.6 mm ±5% |
| Color jacket | green |
| chemical resistance | Oil resistance IEC 60811-2-1, ASTM Öle 1, ICEA S-82-552 Std. |
| thermal resistance | flammwidrig nach UL 1581 Section 1060 (FT1), Section 1061 (cable flame), IEC 60332-1-2 |
| Nominal voltage | 300 V AC |
| Test voltage | 2000 V AC (test duration 1 min) |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -10...+70 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 15× outer Ø |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s |
