M12 female 0° A-cod.with cable
PUR (4x0.5C+2x0.5)C shielded ye 7.5m
| Ürün No. | 7000-15101-1380750 |
| Ağırlık | 0.943 kg |
| Menşei: | DE |
Tanım
Cube67

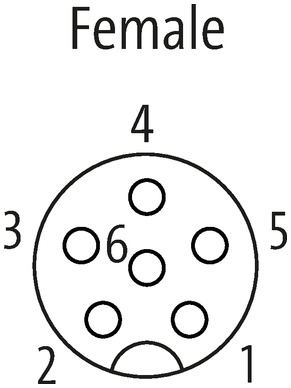

Female straight
M12, 6-pole
Actuator supply external
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Teknik Veriler
| Cable length | 7,5 m |
|---|
Side 1
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Material | PUR |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP66K, IP67 |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Installation | Connection
| Mounting set | M12 x 1 |
|---|
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
|---|
Mechanical data | Material data
| Coating of fitting | nickel plated |
|---|---|
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|
Kablo verileri
Cable
| No./diameter of wires | 4× 0.5 + 2× 0.5 mm² |
|---|---|
| Wire isolation | PP (br, wh, bl, bk, gr, pk) |
| C-track properties | 5 Mio. |
| Outer Ø | 8.0 mm ±5% |
| Cable identification | 138 |
| Cable number | 138 |
| Approval (cable) | CE conform |
| Cable weight [g/m] | 123,2 g |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 39 Ω/km (20 °C) |
| Single wire Ø (core) | 0.15 mm |
| Construction (core) | 28× 0.15 mm (multi-strand wire class 6) |
| Diameter (core) | 4× 0.5 + 2× 0.5 mm² |
| AWG | similar to AWG 20 |
| Material wire isolation | PP |
| Material property wire insulation | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore hardness wire isolation | 55 ±5 D |
| Wire-Ø incl. isolation | 1.5 mm ±5% |
| Color/numbering of wires | br, bl, gr, pk, wh, bk |
| Shield | yes |
| Shield (Type) | Copper braid |
| Optical shield cover | min. 85% |
| Material jacket | PUR |
| Shore hardness jacket | 85 ±5 A |
| Outer-Ø (jacket) | 8.0 mm ±5% |
| Color jacket | yellow |
| Jacket Color | yellow |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| Nominal voltage | 100 V AC |
| Test voltage | 1200 V AC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Bend radius (moving) | 10× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Material jacket | PUR |
