M12 female receptacle 90° Y-cod. solder terminal
| Ürün No. | 7000-15711-0000000 |
| Ağırlık | 0.012 kg |
| Menşei: | DE |
Tanım
M12 Flange female 90°
Ethernet CAT5

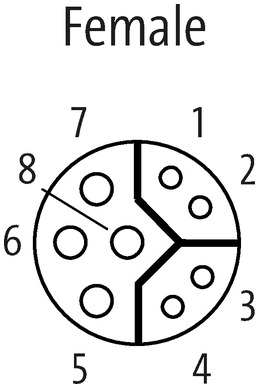

M12, 8-pole
Y-coded
shielded
Solder connection
Front mounting
Ethernet CAT5
M12, 8-pole
Y-coded
shielded
Solder connection
Front mounting
Teknik Veriler
Side 1
| Family construction form | M12 |
|---|---|
| Coding | Y |
| No. of poles | 8 |
| Width across flats | SW14 |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 48 V |
|---|---|
| Operating voltage DC max. | 50 V |
| Operating current per data contact max. | 0,5 A |
| Operating current per power contact max. | 6 A |
Industrial communication
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
|---|---|
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
|---|
Installation | Connection
| Tightening torque | 0,6 Nm |
|---|
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | Nickeled |
|---|---|
| Locking material | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 85 °C |
Ticari bilgiler
| ECLASS-6.0 | 27279220 |
|---|---|
| ECLASS-6.1 | 27279220 |
| ECLASS-7.0 | 27440103 |
| ECLASS-8.0 | 27440103 |
| ECLASS-9.0 | 27440109 |
| ECLASS-10.1 | 27440109 |
| ECLASS-11.1 | 27440109 |
| ECLASS-12.0 | 27440109 |
| ETIM-5.0 | EC001855 |
| GTIN | 4048879495431 |
| Gümrük tarife no (gtip) | 85366990 |
| Paket miktarı | 1 |
