M8 female 0° D-cod. with cable shielded
PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 7.5m
| Artigo Nº | 7000-09041-7960750 |
| Peso: | 0.531 kg |
| País de origem: | DE |
Descrição
Female straight
M8, 4-pole
D-coded
Shielded
with cable sleeves
Product fulfills requirements according to UN/ECE R118
Good chemical and oil resistance (oil resistance does not apply to use with PVC cable)
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Dados tecnicos
| Cable length | 7,5 m |
|---|
Side 1
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |

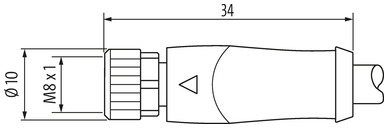

| Family construction form | M8 |
| suitable for corrugated tube (internal Ø) | 8,5 mm |
| Coding | D |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW9 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Coating contact | gold plated |
|---|
Electrical data | Supply
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 1,5 A |
Industrial communication
| Transfer parameters | CAT5e, Class D (ISO/IEC 11801) |
|---|---|
| Data transmission rate max. | 100 MBit/s |
Installation | Connection
| Mounting set | M8 x 1 |
|---|
Device protection | Electrical
| Pollution Degree | 3 |
|---|---|
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating of fitting | nickel plated |
|---|---|
| Material screw connection | Zinc die-casting |
Environmental characteristics | Climatic
| Min. operating temperature (static) | -25 °C |
|---|---|
| Max. operating temperature (fixed) | 80 °C |
| Operating temperature min. (dynamic) | -25 °C |
| Operating temperature max. (dynamic) | 70 °C |
Conformities, approvals, certificates
| Product standard | DIN EN 61076-2-114 (M8) |
|---|
Dados de cabo
Cable
| Cable identification | 796 |
|---|---|
| Approval (cable) | cURus (AWM-Style 20549/11602), CE-conform |
| Cable weight [g/m] | 69,3 g |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Construction (core) | 7× 0.254 mm |
| Diameter (core) | 1× 4× AWG22/7 |
| Material wire isolation | PE |
| Wire-Ø incl. isolation | 1.4 mm ±5% |

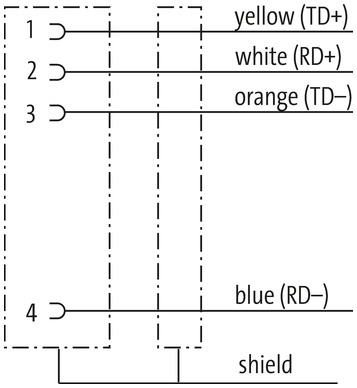

| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| Shield (Type) | Copper braid |
| Optical shield cover | min. 85% |
| Material jacket | PUR |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Color jacket | green |
| chemical resistance | Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std. |
| thermal resistance | flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std. |
| Nominal voltage | 300 V |
| Test voltage | 2000 V AC (test duration 1 min) |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| No. of bending cycles (C-track) | max. 3 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s² |
| Torsion stress | ±180°/m |
| No. of torsion cycles | max. 1 Mio. (25 °C) |
Dados comerciais
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-6.1 | 27060307 |
| ECLASS-7.0 | 27060307 |
| ECLASS-8.0 | 27060307 |
| ECLASS-9.0 | 27060307 |
| ECLASS-10.1 | 27060307 |
| ECLASS-11.1 | 27060307 |
| ECLASS-12.0 | 27060307 |
| ETIM-5.0 | EC001855 |
| Classificação fiscal | 85444290 |
| GTIN | 4048879853057 |
| Quantidade por embalagem | 1 |
