M8 male recept. A-cod. front incl. nut
PP-wires 4x0.25 2m
| Artigo Nº | 7000-08563-9690200 |
| Peso: | 0.055 kg |
| País de origem: | DE |
Descrição

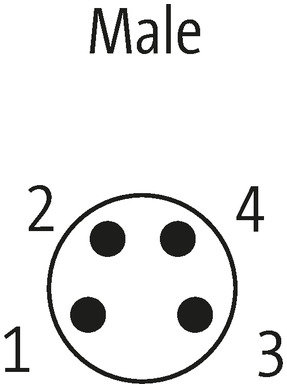

Flange male
M8, 4-pole
Front mounting
with multi-strand wire
Dados tecnicos
| Cable length | 2 m |
|---|
Side 1
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M8 |
| Thread | M8 x 1 |
| Material | Brass |
| No. of poles | 4 |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 50 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
|---|
Installation | Connection
| Mounting set | M8 x 1 |
|---|
Device protection | Electrical
| Protection NEMA | 3, 4, 6P |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | nickel plated |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Brass |
| Material screw connection | Brass |
Mechanical data | Mounting data
| Mounting method | Schraubgewinde |
|---|---|
| Looking techniques | Schraubgewinde |
Environmental characteristics | Climatic
| Min. operating temperature (static) | -25 °C |
|---|---|
| Max. operating temperature (fixed) | 85 °C |
| Operating temperature min. (dynamic) | -25 °C |
| Operating temperature max. (dynamic) | 85 °C |
Conformities, approvals, certificates
| UL 50E | yes |
|---|
Dados de cabo
Cable
| No./diameter of wires | 4× 0.25 mm² |
|---|---|
| Wire isolation | PP (br, bk, bl, wh) |
| Outer Ø | 1.1 mm ±5% |
| Cable number | 969 |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Bend radius (fixed) | 5× outer Ø |
Dados comerciais
| ECLASS-6.0 | 27279220 |
|---|---|
| ECLASS-7.0 | 27440103 |
| ECLASS-8.0 | 27440103 |
| ECLASS-9.0 | 27440103 |
| ETIM-5.0 | EC001855 |
| Classificação fiscal | 85444290 |
| GTIN | 4065909057117 |
| Quantidade por embalagem | 1 |
