7/8'' female 0° screw terminal
5-pol., max. 2,5mm², 8 - 10mm
| Artigo Nº | 7000-78231-0000000 |
| Produto alternativo: | 7000-78221-0000000 |
| Peso: | 0.046 kg |
| País de origem: | DE |
Descrição

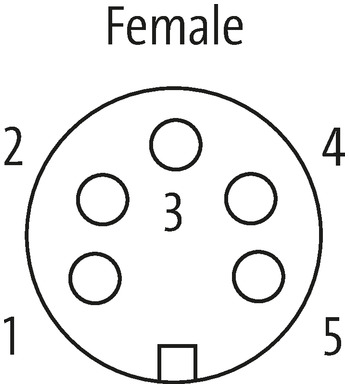

Female straight
7/8" (5-pole)
Sealing range (cable Ø): 8...10 mm
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
7/8" (5-pole)
Sealing range (cable Ø): 8...10 mm
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Dados tecnicos
Technical Data
| Operating voltage | max. 300 V AC/DC |
|---|---|
| Operating current per contact | max. 9 A |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Connection cross section | max. 2.5 mm² |
| Sealing range (cable Ø) | 8...10 mm |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material | PBT |
General data
| Material gasket | FKM |
|---|---|
| Temperature range | -25...+85 °C |
Dados comerciais
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-7.0 | 27279218 |
| ECLASS-8.0 | 27279218 |
| ECLASS-9.0 | 27060311 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC002635 |
| Classificação fiscal | 85366990 |
| EAN | 4048879631495 |
| Quantidade por embalagem | 1 |
