POWER DISTRIBUTOR PD4 7/8'' 5 POLE  27681
O produto pode diferir da imagem

POWER DISTRIBUTOR PD4 7/8'' 5 POLE

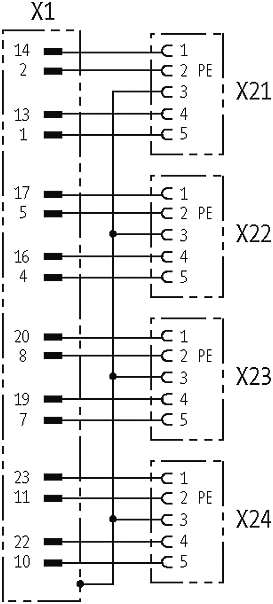

24+E male to 4 x 7/8'' 5-pole female
Artigo Nº 27681
Peso: 0.635 kg
País de origem:  CZ
 Comparar produto

Descrição

Industry male plug 24+PE
to 4× 7/8" UNF female
5-pole
Certificate

Technical Data
Operating voltage 50 V AC/120 V DC (SELV)
Operating current per contact max. 9 A
Locking of ports 2-hand fixing (2 clamps)
Protection IP67 inserted and tightened (EN 60529)
Housing Aluminum die-cast (powder-coated)
General data
Temperature range -30...+85 °C
Dimensions H×W×D 165×70×100 mm

ECLASS-6.0 27279219
ECLASS-6.1 27142601
ECLASS-7.0 27142601
ECLASS-8.0 27142601
ECLASS-9.0 27142601
ECLASS-10.1 27142601
ECLASS-11.1 27142606
ECLASS-12.0 27142606
ETIM-5.0 EC002585
Classificação fiscal 85369010
EAN 4048879063449
Quantidade por embalagem 1


Dados quanto ao produto:
  • Download PDF do produto
  • Download Construction files: STP 27681_stp_x_a.zip
  • Download Document: Installation guide 27681_ina_2_11.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Download Information: EU declaration of conformity 27681_9802-04.16_ce_z_b.pdf
