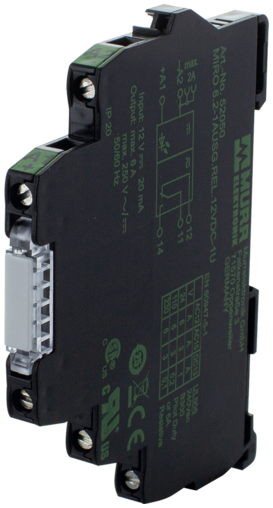

MIRO 6.2 OUTPUT RELAY  52050
실제 제품은 이미지와 다를 수 있습니다.

MIRO 6.2 OUTPUT RELAY

IN: 12 VDC - OUT: 230 VAC/DC/ 6A
Art.No.: 52050
대체품:    6652050
무게 0.04 kg
원산지:  CZ
 제품 비교하기

설명

1 NO/NC contact
6 A
12 V DC
Screw terminals
Certificates as JSON - filtered
Certificates as JSON - filtered

General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range -20...+55 °C
Test isolation voltage 4 kV; safe separation (EN 60947-1)
Mech./ elect. life 20 000 000 switching cycles/load dependent
Dimensions H×W×D 91×6.2×71 mm
Output
Min. load current 10 mA (12 V DC)
Contact material Ag Sn O2
Energize/release/contact bounce time 10/15/1.5 ms
Switching voltage max. 250 V AC/DC
Switching frequency max. 10 Hz
Power rating (voltage dependent) max. 1500 VA/120 W
Switching current per output max. 6 A
Input
Connection voltage - current 12 V DC (10...15 V DC) - 20 mA
LED display LED (green)
Utilization category
AC-15 3 A (24/110/230 V AC)
AC-12 6 A (24/110/230 V AC)
DC-13 1 A (24 V DC); 0.2 A (110 V DC); 0.1 A (230 V DC)
Article No. 52050

EAN 4048879027151
eClass 27371001
세번부호 85364900
포장단위 1


제품 데이터
  • 다운로드 데이터시트
  • 다운로드 Approval: CSA CA 52050_080128-0-000_C3211-07_csa_z_a.pdf
  • 다운로드 Approval: CSA US 52050_080128-0-000_C3211-07_csau_z_a.pdf
  • 다운로드 Approval: UL Registered CA 52050_E140415-NKCR8_urc_z_d.pdf
  • 다운로드 Approval: UL Registered US 52050_E140415-NKCR2_ur_z_d.pdf
  • 다운로드 Construction files: DXF 52000_dxf_x_a.zip
  • 다운로드 Construction files: P8 52050_p8_2_60.zip
  • 다운로드 Construction files: STP 52000_stp_x_a.zip
  • 다운로드 Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • 다운로드 Information: Certificate of conformity Murrelektronik GmbH 17-12.20_(3) China RoHS 2 25EEP_DoC_z_b.pdf
  • 다운로드 Information: Certificate of conformity Murrelektronik GmbH 09-11.20_(3) RoHS&REACh exception 6c&7cI_DoC_z_a.pdf
  • 다운로드 Information: Certificate of conformity UKCA 52050_1250-04.16_uk_z_a.pdf
  • 다운로드 Information: EU declaration of conformity 52050_1250-04.16_ce_z_d.pdf
  • 다운로드 Information: MTTF Report 52050_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
