EMPARRO MEF 1/1 1-phase, 1-stage 10701
실제 제품은 이미지와 다를 수 있습니다.

EMPARRO MEF 1/1 1-phase, 1-stage

I:20A U:230 VAC, snap on, with surge protection
Art.No.: 10701
무게 0.42 kg
원산지:  RO
Find similar Product
질문하기
 제품 추천
 제품 비교하기
Download to Easy-Import-Export

설명

Over voltage protection
Current: 20 A
DIN-rail mountable
Attenuation curves on request.
Certificate
Certificate
Certificate

Electrical data
Leakage current max. 1 mA @ 250 V AC, 50 Hz
Electrical data | Supply
Operating voltage AC min. 85 V
Operating voltage AC max. 265 V
Operating voltage DC min. 100 V
Operating voltage DC max. 230 V
Power frequency 50 ... 60 Hz
Installation
AWG number solid min. 16
AWG number solid max. 8
AWG number stranded/fine stranded min. 16
AWG number stranded/fine stranded max. 10
Connection cross-section solid min. 1,5 mm²
Connection cross-section solid max. 10 mm²
Connection cross-section stranded/fine-stranded min. 1,5 mm²
Connection cross-section stranded/fine-stranded max. 6 mm²
Mechanical data | Mounting data
Mounting method geschnappt
Suitable for mounting type Mounting rail TH35, (EN 60715)

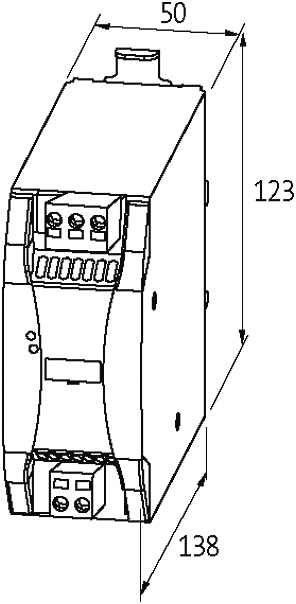

Height 123 mm
Width 50 mm
Depth 138 mm
Environmental characteristics | Climatic
Environmental class (IEC 60721) 3K3

Connection type 1
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 2
Connection type 2
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 3

ECLASS-6.0 27130806
ECLASS-6.1 27420201
ECLASS-7.0 27420290
ECLASS-8.0 27420290
ECLASS-9.0 27420290
ECLASS-10.1 27420208
ECLASS-11.1 27420208
ECLASS-12.0 27420208
ETIM-5.0 EC002498

GTIN 4048879464468
세번부호 85363030
포장단위 1


제품 데이터
  • 다운로드 제품 PDF
  • 다운로드 Approval: UL Registered CA 10701_E255912-FOKY8_urc_z_b.pdf
  • 다운로드 Approval: UL Registered US 10701_E255912-FOKY2_ur_z_b.pdf
  • 다운로드 Construction files: DXF 10701_dxf_x_a.zip
  • 다운로드 Construction files: STP 10701_stp_x_a.zip
  • 다운로드 Document: Installation guide 10701_ina_x_13.zip
  • 다운로드 Document: Product data 10701_pd_exDB_x_14.zip
  • 다운로드 Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • 다운로드 Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • 다운로드 Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • 다운로드 Information: Certificate of conformity UKCA 10701_13-05.15_uk_z_a.pdf
  • 다운로드 Information: EU declaration of conformity 10701_13-03.15_ce_z_a.pdf
