7/8'' female 90° screw terminal

3-pol., max. 1,5mm², 6 -8mm

Art.No.:	7000-78291-0000000
대체품:	7700-A3031-UMB0100
무게	0.04 kg
원산지:	DE

Find similar Product

질문하기

제품 추천

제품 비교하기

데이터카트로 다운로드

Download to Easy-Import-Export

설명

Female 90°

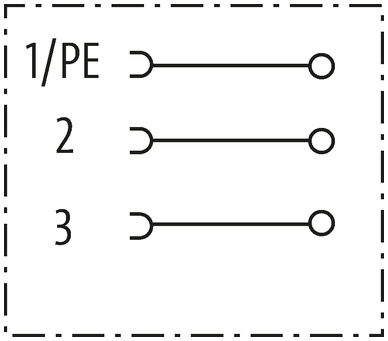

7/8" (3-pole)
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.

기술자료

Technical Data

Operating voltage	max. 300 V AC/DC
Operating current per contact	max. 12 A
Locking of ports	Screw thread 7/8" (recommended torque 1.5 Nm) self-securing
Connection cross section	max. 1.5 mm²
Sealing range (cable Ø)	6...8 mm
Protection	IP67 inserted and tightened (EN 60529)

General data

Temperature range	-25...+85 °C

제품자료

ECLASS-6.0	27279218
ECLASS-7.0	27279218
ECLASS-8.0	27279218
ECLASS-9.0	27060311
ECLASS-10.1	27440102
ECLASS-11.1	27440102
ECLASS-12.0	27440116
ETIM-5.0	EC002635
EAN	4048879511834
세번부호	85366990
포장단위	1
