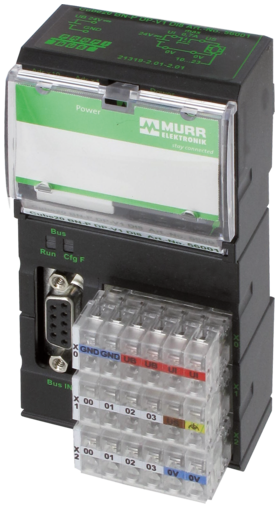

Product may differ from image

Expansion module

With open ended wires

Intelligent Power Distribution

CUBE20 BUS NODE PROFIBUS-DP

8 digital inputs

Art.No.:	56001
Weight:	0.17 kg
生産現国:	CZ

質問する

Download to Easy-Import-Export

製品説明

Bus nodes
DI8 - (BN-P)
PROFIBUS DP
Connection cables are in the online shop under "Connection Technology".

技術情報

Electrical data | Supply

Norm operating voltage	EN 61131-2
Operating voltage US DC	24 V
Operating voltage DC	24 V
Current consumption max.	150 mA
Total current UA max.	4 A
Total current US max.	4 A

Electrical data | Input

Type input	PNP (EN 61131-2)
Input filter time	1 ms
Current carrying capacity max.	0,7 A

Industrial communication

Machine options management	yes

Industrial communication | Bus data

Address range outputs max.	244 Bytes
Address range inputs max.	244 Bytes
Address range min.	0
Address range max.	99
Address setting type	Rotary switch

Diagnostics

Diagnostic	Under voltage
Diagnostic via BUS	per module and channel
Diagnostic via LED	per module
Short circuit diagnosis	yes
LED display	Ethernet connection/data traffic
Overload diagnosis	yes

Installation

Connection cross section max.	1,5 mm²

Installation | Pin assignment

Terminal row X2	Input
Terminal row X3	Input

Device protection | Electrical

Galvanic separation (operating voltage)	yes
Galvanic separation input/output	yes
Degree of protection (EN IEC 60529)	IP20

Mechanical data

Number extension modules max.	15

Mechanical data | Mounting data

Mounting method	geschnappt
Suitable for mounting type	(EN 60715), mounting rail
Height	117 mm
Width	56 mm
Depth	47 mm

Environmental characteristics | Climatic

Operating temperature min.	0 °C
Operating temperature max.	55 °C
Storage temperature min.	-20 °C
Storage temperature max.	85 °C

接続仕様

Connection types

Connection type 1	ProfiBus In
Connection type 2	X0
Connection type 3	X1
Connection type 4	X2

Connection type 1

Family construction form	D-Sub
Gender	female
Color contact carrier	white
No. of poles	9

Connection type 2

Connection	Spring clamp terminals FK
Family construction form	terminal
Gender	female
Color contact carrier	colorless
No. of poles	6

Connection type 3

Connection	Spring clamp terminals FK
Family construction form	terminal
Gender	female
Color contact carrier	colorless
No. of poles	6

Connection type 4

Connection	Spring clamp terminals FK
Family construction form	terminal
Gender	female
Color contact carrier	colorless
No. of poles	6

取引条件

ECLASS-6.0	27242604
ECLASS-6.1	27242608
ECLASS-7.0	27242608
ECLASS-8.0	27242608
ECLASS-9.0	27242608
ECLASS-10.1	27242608
ECLASS-11.1	27242608
ECLASS-12.0	27242608
ETIM-5.0	EC001604
GTIN	4048879049504
HSコード	85176200
Packaging unit	1
