DC-MOTOR COMMUTATING CIRCUIT  50140
Product may differ from image

DC-MOTOR COMMUTATING CIRCUIT

IN: 24 VDC - OUT: 24 VDC / 3 A
Art.No.: 50140
Alternative product:    6650140
Weight: 0.06 kg
生産現国:  CZ
 製品比較

製品説明

Transistor 3 A
24 V DC
Screw terminals

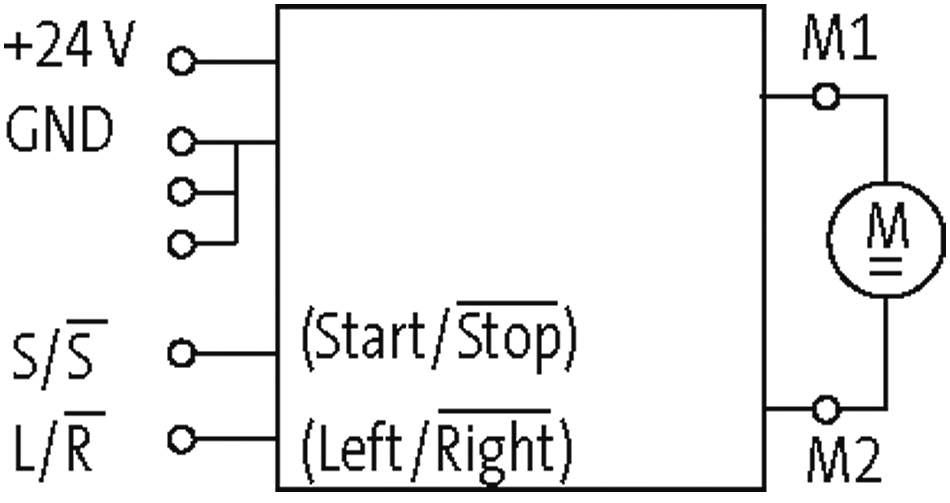

Start-stop/left-right (active stop mode)
Over current / temperature monitoring
Certificate
Certificate

Input
Voltage range OFF 0...5 V DC
Voltage range ON 15...30 V DC
LED display LED (yellow): right running; LED (green): left running
Input current 10 mA
Output
Leakage current (output is open) max. 10 mA
Switching time ON/OFF 1.2/10 ms
LED display LED (red): error (over current/over heated)
Saturation voltage (across output) max. 1.4 V DC
Switching voltage 19.2...30 V DC
Changing time max. 50 ms
Switching frequency max. 1 Hz (motor dependant)
Highest current approx. 6 A for 100 ms
Switching current per output max. 3 A
General data
Mounting method DIN-rail mountable TH35 or G32 (EN 60715)
Temperature range 0...+50 °C
Test isolation voltage no galvanic separation
Housing Black plastic, flame retardant
Dimensions H×W×D 90×12.4×70 mm

ECLASS-6.0 27371604
ECLASS-6.1 27370905
ECLASS-7.0 27370905
ECLASS-8.0 27370905
ECLASS-9.0 27370905
ECLASS-10.1 27370905
ECLASS-11.1 27370905
ECLASS-12.0 27370905
ETIM-5.0 EC002615
EAN 4048879027922
HSコード 85414900
Packaging unit 1


Data Regarding Article:
  • Download 製品PDF
  • Download Construction files: DXF 50140_dxf_x_a.zip
  • Download Construction files: STP 50140_stp_x_a.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 50140_1518-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 50140_1518-04.16_ce_z_b.pdf
  • Download Information: MTBF Report 50140_SN29500(40°C)-BerechnungV1.4_mtbf_p_a.pdf
