MOTOR SUPPRESSOR

RC, 3x575VAC/20kW

Art.No.:	23018
Weight:	0.189 kg
生産現国:	CZ

Find similar Product

質問する

オススメ商品

製品比較

データカートへ入れる

Download to Easy-Import-Export

製品説明

3× 575 V AC
RC
Suppressors for other voltages, frequencies, and motor ratings available on request. Do not use RC motor suppressors with frequency inverters.

技術情報

Electrical data | Supply

Power frequency	50 ... 60 Hz

Electrical data | Input

Voltage input AC	575 V

Installation

Connection cross-section solid min.	0,75 mm²
Connection cross-section solid max.	2,5 mm²

Installation | Connection

Connection information	terminal
Family construction form	M4

Installation | Pin assignment

No. of poles	3

Device protection | Media

Flame resistance	flame retardant

Mechanical data | Material data

Combustibility class housing (UL94)	V-0
Material housing	Plastic
Material potting compound	2-component epoxy

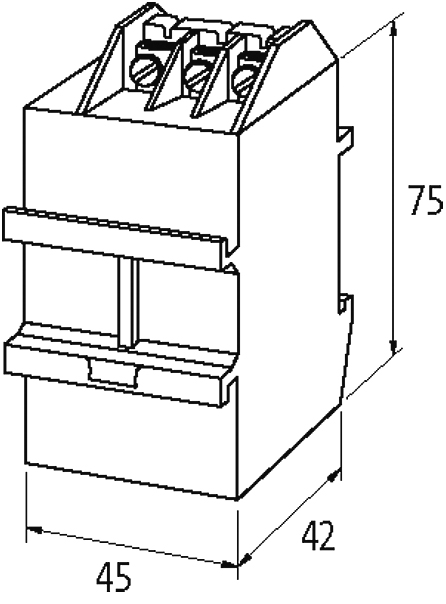

Mechanical data | Mounting data

Height	75 mm
Width	45 mm
Depth	42 mm

Environmental characteristics | Climatic

Operating temperature min.	-20 °C
Operating temperature max.	60 °C

取引条件

ECLASS-6.0	27371013
ECLASS-6.1	27371013
ECLASS-7.0	27371013
ECLASS-8.0	27371013
ECLASS-9.0	27371013
ECLASS-10.1	27371013
ECLASS-11.1	27371013
ECLASS-12.0	27371013
ETIM-5.0	EC000197
GTIN	4048879019521
HSコード	85363010
Packaging unit	1

ダウンロード

Data Regarding Article:

Download 製品PDF
Download Approval: EAC 23018_ЕАЭС RU С-DE.АБ53.В.03601-2027.02.14_eac_z_b.pdf
Download Document: Product data 23000_pd_x_13.zip
Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
Download Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
Download Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
Download Information: Certificate of conformity UKCA 23018_02-04.21_uk_z_a.pdf
Download Information: EU declaration of conformity 23018_02-04.21_ce_z_a.pdf
