M12 female 0° B-cod. with cable shielded
PVC 1x2xAWG24 shielded vt UL/CSA 40m
| Art.No.: | 7000-14061-8504000 |
| Weight: | 2.381 kg |
| 生産現国: | DE |
製品説明
PROFIBUS
Female straight
M12, 2-pole
B-coded
shielded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
技術情報
| Cable length | 40 m |
|---|
Technical Data
| Operating voltage | max. 60 V AC/DC |
|---|---|
| Operating voltage (only UL listed) | 30 V AC/DC |
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| Material group | IEC 60664-1, category I |
| Coding | B-coded |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Material | PUR |
| Locking material | Zinc die casting, matte nickel plated |
| Compression gland | M12 (SW13) |
General data
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Pollution Degree | 3 |
| Stripping length (jacket) | 20 mm |
| Temperature range | -25...+85 °C, depending on cable quality |
Cable
| No./diameter of wires | 1× 2× 0.25 mm² |
|---|---|
| Wire isolation | PE (rd, gn) |
| C-track properties | 2 Mio. |
| Outer Ø | 7.8 mm ±5% |
| Cable identification | 850 |
| Cable weight [g/m] | 75,9 g |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 68 Ω/km (20 °C) |
| Single wire Ø (core) | 0.13 mm |
| Construction (core) | 19× 0.13 mm |
| Diameter (core) | 1× 2× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material wire isolation | PE |
| Wire-Ø incl. isolation | 2.55 mm ±5% |

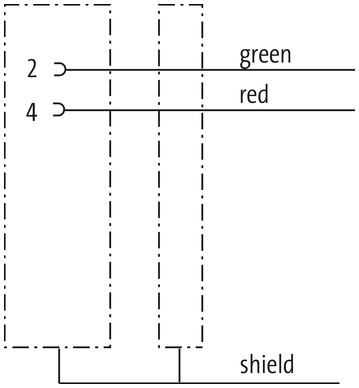

| Color/numbering of wires | rd, gn |
| Stranding combination | 2 cores twisted with 2 fillers |
| Shield | yes |
| Shield (Type) | Copper braid |
| optical shield cover | min. 70% |
| Material jacket | PVC |
| Outer-Ø (jacket) | 7.8 mm ±5% |
| Color jacket | violet |
| Jacket Color | violet |
| Nominal voltage | 30 V AC |
| Test voltage | 1.5 kV |
| Temperature range (fixed) | -25...+70 °C |
| Temperature range (fixed) | -25...+70 °C |
| Temperature range (mobile) | -20...+50 °C |
| Temperature range (mobile) | -20...+50 °C |
| Bend radius (fixed) | 7.5× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Material jacket | PVC (UL) |
取引条件
| ECLASS-6.0 | 27061801 |
|---|---|
| ECLASS-6.1 | 27060307 |
| ECLASS-7.0 | 27060307 |
| ECLASS-8.0 | 27060307 |
| ECLASS-9.0 | 27060307 |
| ECLASS-10.1 | 27060307 |
| ECLASS-11.1 | 27060307 |
| ECLASS-12.0 | 27060307 |
| ETIM-5.0 | EC001855 |
| EAN | 4048879539241 |
| HSコード | 85444290 |
| Packaging unit | 1 |
