M12 male recept. Y-cod. front
PP-wires AWG20/26 0.3m
| Art.No.: | 7000-15601-9420030 |
| Weight: | 0.046 kg |
| 生産現国: | DE |
製品説明

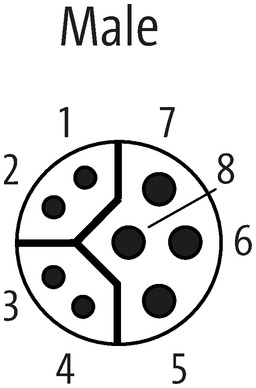

Flange male
M12, 8-pole
Y-coded
Front mounting
with multi-strand wire
技術情報
| Cable length | 0,3 m |
|---|
Side 1
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Coating head | nickel plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Coding | Y |
| Material contact | Copper alloy |
| Material | Zinc die-casting |
| Width across flats | SW14 |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Operating current per data contact max. | 0,5 A |
| Operating current per power contact max. | 6 A |
Diagnostics
| Status indication LED | no |
|---|
Installation | Connection
| Mounting set | M16 x 1.5 |
|---|
Device protection | Electrical
| Protection NEMA | 3, 4, 6P |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
|---|
Mechanical data | Material data
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | Schraubgewinde |
|---|---|
| Looking techniques | Schraubgewinde |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Conformities, approvals, certificates
| UL 50E | yes |
|---|
ケーブルデータ
Cable
| No./diameter of wires | 4× AWG20/19 (0.615) + 1× 4× AWG26/19 (0.155) |
|---|---|

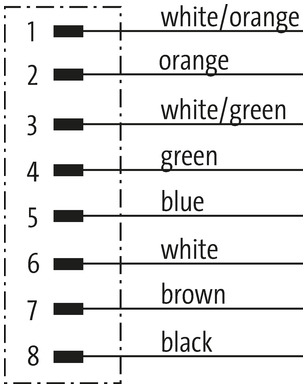

| Wire isolation | PP (bk, br, wh, bl), (whor, or, whgn, gn) |
| C-track properties | 5 Mio. |
| Cable number | 942 |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -40...+80 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Torsion stress | 2 Mio. ±30°/m |
取引条件
| ECLASS-6.0 | 27279220 |
|---|---|
| ECLASS-6.1 | 27279220 |
| ECLASS-7.0 | 27440103 |
| ECLASS-8.0 | 27440103 |
| ECLASS-9.0 | 27440103 |
| ECLASS-10.1 | 27440103 |
| ECLASS-11.1 | 27440103 |
| ECLASS-12.0 | 27440103 |
| ETIM-5.0 | EC002061 |
| GTIN | 4048879673372 |
| HSコード | 85444290 |
| Packaging unit | 1 |
