M12 male 90° A-cod. screw terminal

4-pol., 0,14 - 1,5mm², 2,5 - 8mm

Art.No.:	7000-12854-0000000
Alternative product:	7000-12851-0000000
Weight:	0.031 kg
生産現国:	SK

Find similar Product

質問する

オススメ商品

製品比較

データカートへ入れる Download to Easy-Import-Export

製品説明

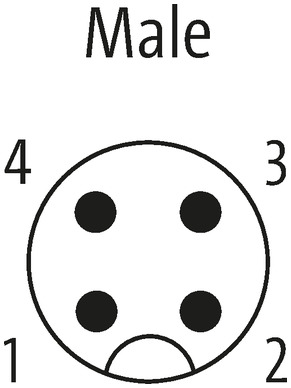

Male 90°
M12, 4-pole
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.

技術情報

Side 1

Family construction form	M12
Degree of protection (EN IEC 60529)	IP67

Electrical data | Supply

Operating voltage AC max.	250 V
Operating voltage DC max.	250 V
Operating current per contact max. (40°C)	7,5 A

Installation

Connection cross section min.	0,14 mm²
Connection cross section max.	1,5 mm²

Installation | Connection

Tightening torque	0,6 Nm
Mating cycles min.	100

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3/2

Mechanical data | Mounting data

Mounting method	Schraubgewinde
Clamping range min.	2,5 mm
Clamping range max.	8 mm
Height	46 mm
Width	28,5 mm
Depth	20 mm

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C

取引条件

ECLASS-6.0	27279221
ECLASS-7.0	27440104
ECLASS-8.0	27440104
ECLASS-9.0	27440102
ECLASS-10.1	27440102
ECLASS-11.1	27440102
ECLASS-12.0	27440116
ETIM-5.0	EC001855
GTIN	4048879839112
HSコード	85366990
Packaging unit	1

ダウンロード

Data Regarding Article:

製品PDF
Approval: UL Listed CA 7000-12854-0000000_E325311-MLE331608-CYJV7_ulc_z_a.pdf (A)
Approval: UL Listed US 7000-12854-0000000_E325311_ML-E331608-E325311-CYJV_ul_z_b.pdf (B)
Construction files: STP 7000-12854-0000000_stp_x_a.zip (A)
Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf (04)
Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf (01)
Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf (01)
