M12 male 0° D-cod. Push-In 7000-14801-0000000
Product may differ from image

M12 male 0° D-cod. Push-In

4-pol., 0,14 - 0,75mm², 4 - 8mm, shielded, CAT5

Art.No.: 7000-14801-0000000
Weight: 0.038 kg
生産現国:  DE
Find similar Product
質問する
 オススメ商品
製品比較
データカートへ入れる Download to Easy-Import-Export

製品説明

Ethernet CAT5

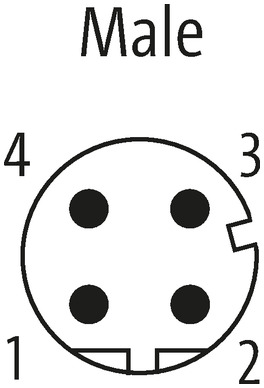

Male straight
M12, 4-pole
D-coded
shielded
Push-in connection
Sealing range (cable Ø): 4...8 mm
Certificate
Certificate
Bus technologies
Bus technologies

Side 1
Tightening torque 0,4 Nm
Family construction form M12
Coding D
Material contact Bronze
No. of poles 4
Degree of protection (EN IEC 60529) IP65, IP67
Electrical data | Supply
Operating voltage AC 48 V
Operating voltage DC 60 V
Operating voltage DC (UL-listed) 60 V
Current operating per contact (UL) 4 A
Current operating per contact max. 4 A
Industrial communication
Transfer parameters CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
Data transmission rate max. 100 MBit/s
Installation
Connection cross section min. 0,14 mm²
Connection cross section max. 0,75 mm²
Installation | Connection
Connection information Push-In
Mating cycles min. 100
Device protection
Shielded yes
Device protection | Electrical
Additional condition protection degree inserted, screwed
Pollution Degree 3
Overvoltage category (EN 60950-1) II
Mechanical data | Material data
Coating contact gold plated
Coating locking Nickeled
Material gasket NBR
Locking material Zinc die-casting
Mechanical data | Mounting data
Mounting method inserted, screwed, Shaking protection
Clamping range min. 4 mm
Clamping range max. 8 mm
Environmental characteristics | Climatic
Operating temperature min. -40 °C
Operating temperature max. 85 °C
Conformities, approvals, certificates
Combustibility class (UL94) V-0
Product standard DIN EN 61076-2-101 (M12)

ECLASS-6.0 27279221
ECLASS-7.0 27440104
ECLASS-8.0 27440104
ECLASS-9.0 27440102
ETIM-5.0 EC002635
GTIN 4065909028957
HSコード 85366990
Packaging unit 1


Data Regarding Article:
  • 製品PDF
  • Approval: UL Listed CA 7000-14801-0000000_E325311-CYJV7_ulc_z_a.pdf (A)
  • Approval: UL Listed US 7000-14801-0000000_E325311-CYJV_ul_z_a.pdf (A)
  • Construction files: STP 7000-14801-0000000_stp_x_a.zip (A)
  • Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf (02)
  • Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf (01)
  • Information: Certificate of conformity UKCA con_01-10.21_uk_z_b.pdf (B)
  • Information: EU declaration of conformity con_01-10.21_ce_z_b.pdf (B)
