MTPS POWER SUPPLY 1/2-PHASE, SMOOTHED 85402
Product may differ from image

MTPS POWER SUPPLY 1/2-PHASE, SMOOTHED

IN: 230/400+/-15VAC OUT: :24V/2ADC
Art.No.: 85402
Weight: 2.2 kg
Country of origin:  CZ
Find similar Product
Ask question
 Recommend Product
 Product Comparison
Download to Easy-Import-Export

Description

Current: 2 A
Output rating: 48 W
This power supply units meet the (EN 61000-3-2) standard for harmonic current.

Input
Input voltage 230/400 ±15 V AC
Input fuse (external) 0.5 A (T) (230 V AC); 0.3 A (T) (400 V AC)
LED display LED (green) for input voltage
Input current 0.37 A (230 V AC); 0.21 A (400 V AC)
Frequency 50...60 Hz
Output
Output voltage 24 V DC (SELV)
Output suppression LED, VDR and smoothing capacitor
Output fuse 2 A (T)
Output current max. 2 A
Ripple max. 5% eff/rms
General data
Standards EN 61558-2-6, EN 62041 category I, EN 55011 B, EN 61000-3-2
Mounting method DIN-rail mountable TH35-15 (EN 60715) or for key-hole mounting
Temperature range -20...+60 °C, no condensation

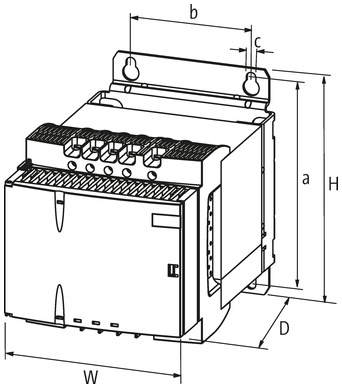

Fixing centers a×b×c 96×60×5.5 mm
Dimensions H×W×D 108×87×142 mm

ECLASS-6.0 27049002
ECLASS-7.0 27049002
ECLASS-8.0 27049002
ECLASS-9.0 27040701
ETIM-5.0 EC002540
customs tariff number 85044095
EAN 4048879079853
Packaging unit 1
