M12 male recept. Y-cod. rear
PP-wires AWG20/26 0.2m
| Art.No.: | 7000-15605-9420020 |
| Weight: | 0.028 kg |
| Country of origin: | DE |
Description

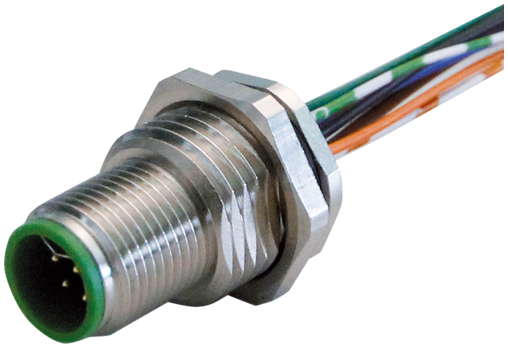

Flange male
M12, 8-pole
Y-coded
Rear mounting
with multi-strand wire
Technical Data
| Cable length | 0,2 m |
|---|
Side 1
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Coating head | nickel plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Coding | Y |
| Material contact | Copper alloy |
| Material | Brass |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Operating current per data contact max. | 0,5 A |
| Operating current per power contact max. | 6 A |
Diagnostics
| Status indication LED | no |
|---|
Installation | Connection
| Mounting set | M16 x 1.5 |
|---|---|
| Width across flats | SW19 |
Device protection | Electrical
| Protection NEMA | 3, 4, 6P |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
|---|
Mechanical data | Material data
| Coating housing | nickel plated |
|---|---|
| Coating locking | nickel plated |
| Coating of fitting | nickel plated |
| Locking material | Brass |
| Material screw connection | Brass |
Mechanical data | Mounting data
| Mounting method | Schraubgewinde |
|---|---|
| Looking techniques | Schraubgewinde |
Environmental characteristics | Climatic
| Min. operating temperature (static) | -25 °C |
|---|---|
| Max. operating temperature (fixed) | 80 °C |
| Operating temperature min. (dynamic) | -25 °C |
| Operating temperature max. (dynamic) | 80 °C |
Conformities, approvals, certificates
| Product standard | DIN EN 61076-2-101 (M12) |
|---|---|
| UL 50E | yes |
Cable data
Cable
| No./diameter of wires | 4× AWG20/19 (0.615) + 1× 4× AWG26/19 (0.155) |
|---|---|
| Wire isolation | PP (bk, br, wh, bl), (whor, or, whgn, gn) |
| C-track properties | 5 Mio. |
| Cable number | 942 |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -40...+80 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Torsion stress | 2 Mio. ±30°/m |
Commercial data
| ECLASS-6.0 | 27279220 |
|---|---|
| ECLASS-6.1 | 27279220 |
| ECLASS-7.0 | 27440103 |
| ECLASS-8.0 | 27440103 |
| ECLASS-9.0 | 27440103 |
| ECLASS-10.1 | 27440103 |
| ECLASS-11.1 | 27440103 |
| ECLASS-12.0 | 27440103 |
| ETIM-5.0 | EC002061 |
| customs tariff number | 85444290 |
| GTIN | 4048879785006 |
| Packaging unit | 1 |
