RJ45 male 0° / RJ45 male 0° shielded
PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 5m
| Art.No.: | 7000-74301-6590500 |
| Weight: | 0.427 kg |
| Country of origin: | DE |
Description
Ethernet CAT5
Male straight – male straight
RJ45 – RJ45, 4-pole
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
| Cable length | 5 m |
|---|
Side 1
| Mounting method | inserted |
|---|---|
| Family construction form | RJ45 |
| No. of poles | 4 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 1,5 A |
Industrial communication
| Transfer parameters | CAT5e, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
|---|---|
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
|---|
Diagnostics
| Status indication LED | no |
|---|
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 1 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
|---|
Mechanical data | Material data
| Material housing | PUR |
|---|---|
| Locking material | PA |
Mechanical data | Mounting data
| Looking techniques | Snap-in connector |
|---|
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Cable data
Cable
| Cable identification | 659 |
|---|---|
| Approval (cable) | cURus (AWM-Style 22009/10988) |
| Cable weight [g/m] | 89,1 g |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Diameter (core) | 1× 4× AWG22/7 |
| AWG | similar to AWG 22 |
| Material wire isolation | PE |
| Wire-Ø incl. isolation | 1.4 mm ±5% |

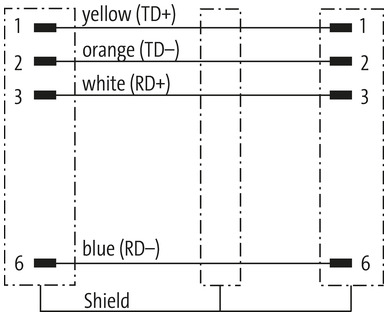

| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| Shield (Type) | Copper braid |
| Optical shield cover | min. 85% |
| Material jacket | PUR |
| Outer-Ø (jacket) | 7.4 mm ±5% |
| Color jacket | green |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 600 V |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s² |
Commercial data
| ECLASS-6.0 | 27061801 |
|---|---|
| ECLASS-6.1 | 27060307 |
| ECLASS-7.0 | 27060307 |
| ECLASS-8.0 | 27060307 |
| ECLASS-9.0 | 27060307 |
| ECLASS-10.1 | 27060307 |
| ECLASS-11.1 | 27060307 |
| ECLASS-12.0 | 27060307 |
| ETIM-5.0 | EC002599 |
| customs tariff number | 85444210 |
| GTIN | 4048879651196 |
| Packaging unit | 1 |
