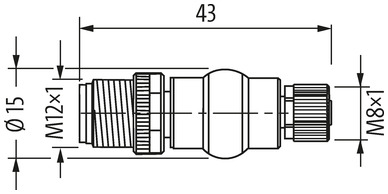

Adaptor M12 male / M8 female A-cod.
3-pol., conf. 1,3,4
| Art.No.: | 7000-42201-0000000 |
| Weight: | 0.013 kg |
| Country of origin: | DE |
Description
Adapter
Male - female
M12 – M8, 3-pole
for M12 distribution box, 3-pole
Art-No. 7005 - M12/M8 Lite - (plastic hexagonal screw) on request
Male - female
M12 – M8, 3-pole
for M12 distribution box, 3-pole
Art-No. 7005 - M12/M8 Lite - (plastic hexagonal screw) on request
Technical Data
Technical Data
| Operating voltage | max. 50 V AC/60 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V AC/DC |
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| No. of poles | 3 |
| Material group | IEC 60664-1, category I |
| Coding | M12, A-coded |
| Locking of ports | Screw thread (M8/M12×1 mm) recommended torque 0.4/0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material | PUR |
| Locking material | Zinc die casting, matte nickel plated |
| Compression gland | M8 (SW9), M12 (SW13) |
General data
| Standards | DIN EN 61076-2-101 (M12), DIN EN 61076-2-104 (M8) |
|---|---|
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C |
classifications
| ECLASS-6.0 | 27143423 |
|---|---|
| ECLASS-7.0 | 27449001 |
| ECLASS-8.0 | 27449001 |
| ECLASS-9.0 | 27440321 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440106 |
| ETIM-5.0 | EC001855 |
Commercial data
| customs tariff number | 85366990 |
|---|---|
| GTIN | 4048879143202 |
| Packaging unit | 1 |
